Archive for category: Dyeing Tips & Recipes

As I have some home-grown madder waiting to be processed, I thought I’d write a few more words about dyeing with madder.

Madder in my dye garden













After the madder roots have been dug up (and remember to dig as deeply as possible so as not to miss the thickest roots), they need to be washed well to get rid of the soil. Although some sources suggest otherwise, the roots can successfully be used freshly-dug and straight from the ground and I have obtained excellent bright reds from fresh roots. They can also be dried for use later.

Madder roots dug up from the garden













I usually soak the roots in a tub of water for an hour or two and then scrub them with a brush to get rid of the dirt. As it’s a good idea to wash out some of the less desirable brown and yellow pigments, it doesn’t matter if some colour leaches out into the washing water. Once the roots are clean, I chop them up as small as possible. (Incidentally, a garden shredder or an old food-processor can be very useful for chopping up madder & other roots.)  If I don’t intend to use them immediately, I then spread the roots out to dry on sheets of newspaper on wire mesh or wooden trays or in shallow cardboard boxes. If I’m lucky and the sun is shining, they dry fairly quickly outside. Otherwise I put them in the airing cupboard. If you have to put the roots on top of one another, it’s a good idea to put a sheet of newspaper between the layers and make sure to turn them over regularly, so they don’t develop mould. Once they are completely dried out, I put them in strong paper sacks and store them in a dry place, either under a bed or in the airing cupboard. It’s important to keep them away from damp and wet, as they can easily become mouldy. It’s not too disastrous if they do develop mould as they still seem to produce a reasonable dyebath, although the colour may be duller.

To obtain a true red from madder it is necessary to use an alum mordant. However, madder can also be successfully applied to unmordanted fibres, especially wool. The colours obtained without a mordant tend to be more orange or brown in tone but using an alkaline modifier (for example washing soda) can often produce some very attractive shades of pink. An aubergine purple can also be obtained from madder by using iron as a mordant and then applying an alkaline modifer.

I’ve done many experiments with madder over the years, usually leaving the roots in the dyebath & either dyeing without heat at all or following the often-repeated instructions to keep the temperature low for reds. However, I discovered a little while ago that madder root can be simmered to extract the colour, just as one does with other dyes, without losing the red. Before I do anything else, I wash the roots in cool to warm water, then strain them through a sieve to get rid of the water. I then put the same roots in a pot & pour boiling water over them (at least enough to cover them well), leave them for a minute or two & then strain off the liquid, which can either be thrown away or used for a separate dyebath. This gets rid of some of the less desirable yellow & brown pigments. If I’m feeling really brave, I may repeat this last process once more, especially if I plan to save the discarded liquid for a separate dyebath, but I’m always afraid I may be removing some of the very desirable red dye, as well as the pigments I don’t want. Then I add more boiling water (or cool if you prefer not to keep boiling up the kettle) to the same madder roots & simmer them for about 30 minutes. I then strain off the dye liquid, let it cool to well below a simmer, add the fibres & leave them to steep for as long as it takes to get the red I want. I may add some heat after a while but I never allow the dyebath to simmer once the fibres have been added. This method seems to result in reds just as good as, and often better than, those from the more common madder-dyeing methods. And the roots can be simmered again for another dyebath.

If you live in a soft water area, your tap water may be too acidic to be able to achieve reds from madder and you will only get oranges and rusts. These shades can be shifted towards red by using an alkaline modifier, such as a washing soda after-bath. Washing soda can also be added to the prepared dyebath but only if you plan to apply the dye without heat. It’s important to remember not to apply heat to any solution containing washing soda, especially if you are dyeing wool, as this may destroy the fibres.

Madder is a truly remarkable dye & it is often difficult to completely exhaust the roots. I now often dry out the roots after the first dyeing process & store them ready to use again later. If you do this, don’t store the dried roots in plastic bags as they readily become mouldy if they get the least bit damp. (Actually, they still seem to be fine to use even if they are mouldy, although the dyebath smells less pleasant.) I dry the roots out in the airing cupboard as described above, then put them in paper sacks & store them in the airing cupboard or under a bed until I need them.

If you grow your own madder, don’t forget that the dried plant tops also give pretty colours. Around late Autumn, the plant tops start to look dry & pale, like straw, & they can be cut off & used for a dyebath. With an alum mordant, they can give pretty pinks & without a mordant they give beige to tan colours.

Note: There are full details for using madder in my new book “Colours from Nature” (Click on “My Books” on the home page for more information)

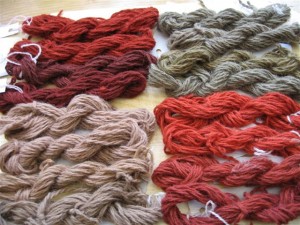

A range of shades from madder

Dyers who grow woad will often find they have far more woad seeds than they could possibly need for sowing themselves or passing on to other dyers.

Some years ago I did some tests using ripe purple/black woad seeds in the dyepot and I was intrigued by the results.

                                                                                                             This rather dark image shows the page from my record book where I have the samples from this dyebath. The upper (1) of each pair of samples is unmordanted and the lower (2) is alum-mordanted. The seeds produced an attractive green on alum-mordanted wool, and a more yellow colour on unmordanted wool. Perhaps the most interesting sample was the one modified in clear vinegar (acidic), which produced a pale pink on unmordanted wool and a deeper pink colour on alum-mordanted wool. An alkaline modifier gave lighter yellowy greens, copper intensified the greens and iron produced greyish greens.

Woad seeds can be used in the same way as most other plant materials and I would suggest using at least the same weight of seeds as fibres (100%). Simmer the seeds for about 45 minutes to extract the colour, then strain off the dye liquid, add the fibres and simmer them for about 45 minutes to an hour, or until the colour is deep enough.

                                                                                                                                                                                  Recently I collected a bagful of woad seeds for a dyebath. This time about half of the seeds I used in the dyepot were not fully ripe and were still green in colour, rather than purple/black. The colours I obtained this time were less interesting, suggesting that it is advisable to allow the seeds to mature fully and become black before using them in the dyepot.

From top to bottom the samples are: No modifier, + acidic modifier, + alkaline modifier, + iron modifier. For each category there are two samples: the upper one is unmordanted and the lower one is alum-mordanted. The shades are very similar to those achieved from the earlier dyebath using fully mature seeds, but considerably less intense.

My most recent use of cochineal was to dye some handspun Blue-faced Leicester fleece in readiness for my granddaughter’s winter coat. My daughter asked for a strong pink colour because she wants to make it clear that Milly is a girl and not a boy! Apparently too many kindly old ladies look at her and admire “such a sweet little boy” and this is beginning to cause my daughter, Jessica, stress. I keep telling her that babies and toddlers all tend to look like boys until they have enough hair to display their sex through a suitable hairstyle, but in the meantime my task is to produce garments that have a decidedly feminine bias!

These colours should be feminine enough, I hope!  All the skeins were alum-mordanted and the first three were dyed using a cochineal extract from France. The next skein was from the first exhaust dyebath. For the last skein, I added a teaspoon of madder extract to the remaining exhaust dyebath and this livened up the shade a little.

To be honest, I shall be quite relieved when this desire for pink wanes because, as a vegetarian and supporter of female equality, I have to confess to a certain reluctance to use cochineal, unless I need a colour that can’t be achieved from any other dye. This reluctance is because the dye colour in cochineal is contained in the bodies of female scale insects of the Dactylopius species, which live on species of Opuntia or prickly-pear cactus, and many thousands of insects are required to make a relatively small amount of dye colour.

More about cochineal

The cochineal insect is probably native to Mexico but spread elsewhere in Central and South America. Today, Peru is the main producer of the dye and cochineal is also farmed in the Canary Islands, where it was introduced as a commercial crop in the 19th century.

Cochineal is a precious commodity and correspondingly expensive. However, a little goes a long way and full colours can be achieved using as little as 10% cochineal per weight of materials to be dyed, although the depth of colour may also depend on the chemical composition of the water used.

The shade of red for which cochineal probably became most famous is a brilliant scarlet, the colour of English huntsmen’s jackets. This colour was found, possibly by accident, in the early 17th century by a Dutch engineer and alchemist, Cornelius Drebbel, who discovered that the addition of tin to cochineal resulted in a brilliant red colour. Once dyers had mastered the use of tin in cochineal dyeing, this red colour was much in demand. It was used for British army officers’ uniforms and Gloucestershire became famous for scarlet woollens dyed with cochineal and tin.

This red can be re-created by the addition of 7% tin (stannous chloride) and 8% oxalic acid to the prepared cochineal dye bath and in the past I have successfully used it on unmordanted wool fibres. (See photo below.) Nowadays I prefer to avoid tin and the chemical oxalic acid, as they are among the more toxic chemicals and not really necessary for my purposes. But Drebbel’s Scarlet is certainly an amazingly brilliant shade of red.

Drebbels’s Scarlet

Dyeing with cochineal

Cochineal is a versatile dye and gives light- and wash-fast shades of pink, red, orange, purple and purple-brown. Cochineal also reacts well to colour modifiers. An acidic modifier makes the colour more orange in tone, alkaline and copper modifiers shift the shades towards purple, and an iron modifier makes the colours purple-brown.

Dyers living in areas where the tap water is hard, rather than soft, sometimes report that they find it difficult to obtain strong colours from cochineal. One possible solution would be to use distilled water or rain water. Alternatively, water for the dyebath can be boiled and left to stand to allow any sediment to sink to the bottom. The water can then be carefully poured or siphoned off, without adding the sediment to the dyebath. The tap water in my area is hard, with a pH value of  7, which is neutral, so hardness may be more of a problem in areas where the pH value of the water is too alkaline (ie above pH8). If this is the case, reducing the pH of the water by adding a teaspoon or two of citric acid or cream of tartar might help. I sometimes add citric acid to the cochineal dyebath if the dyed colour appears too purple in tone and this shifts the colour towards red.

Many dyers use cochineal in powdered form – either purchased as a powder or ground in a mortar and pestle or a coffee-grinding machine. However, in my experience the powder particles can sometimes be very difficult to remove from the dyed fibres, unless the dye bath is strained through a coffee filter paper before use. The cochineal insects can also be used whole or partially ground and, if I am using whole insects rather than the extract form of cochineal, I use the multiple extraction method to extract the colour. This means that the cochineal dyestuff is simmered two or three times for about 15 to 20 minutes and each time the dye liquid is strained off into the dye pot. The combined liquids form the dye bath.

To start with, pour boiling water over the cochineal and leave it to steep for 20 to 30 minutes. Then add more water if necessary to ensure the liquid doesn’t boil dry and simmer the cochineal for 15 to 20 minutes. Then strain off the liquid through muslin or a fine-meshed sieve into the dye pot. Repeat this process twice more, using the same cochineal dyestuff. If you are using powdered cochineal, strain the dye liquid through a coffee filter paper each time and strain again before use. If any scum has formed on the surface, remove this with kitchen paper before using the dye bath.

Then add the fibres, plus more water if necessary to enable them to move freely in the liquid, raise the temperature gradually and simmer for 30 to 45 minutes. Leave to cool, preferably overnight, then rinse well and wash the fibres in a pH neutral washing medium. I usually use dishwashing liquid, which is ideal for washing dyed materials.

Cochineal is also readily available as an extract and in this form it can simply be dissolved in hot water and then added to the dyebath. Half a teaspoon of dye extract will usually dye 100gms of fibre a rich shade. The fibres are then added and dyeing proceeds as described above.

Pinks and reds

An alum mordant produces shades of pink and pinkish red on all fibres. For pale pinks use 5% cochineal (i.e. 5gms cochineal per 100gms dry weight of fibres) and for deeper shades increase the amount to between 15% and 30%, depending on the depth of colour required. Prepare and use the dye bath as described above.

In Peru, where chemical mordants may be difficult to obtain, cochineal is sometimes used without a mordant on animal fibres. The following method will give a rich tomato-red if the right amount of acid is added. Use 20% to 30% cochineal and prepare the dye bath as described above. Then gradually add drops of either clear vinegar or lemon or lime juice, stirring well as you proceed, until the liquid is a bright red-orange in colour. Be careful not to add too much acid, or you will miss the red and end up with orange. If you add too little, the fibres will be too brown in tone. Stir well again, then add the unmordanted fibres and continue as described above. If necessary, soak the fibres after dyeing for 15 to 30 minutes in a weak solution of water and clear vinegar to brighten the colour.

This photo shows a range of shades from cochineal

Last November, a comment from handweaver Sandra Rude (www.sandrarude.blogspot.com) about her methods for using wood shavings for dyeing led me to her blog, where she has recipes for preparing and using dyebaths from wood shavings. First, she soaks the shavings in alcohol (or methylated spirits) for several weeks to extract the colour. When the liquid has developed a strong colour, she strains off the liquid then adds the fibres, plus enough water as necessary to allow the fibres to move freely in the solution. The dyebath is then heated gently (but no higher than 140F) and the fibres are left to soak until they have taken up the colour. (For further details, look at Sandra’s blog using the link above.)

This method of colour extraction is not entirely new to me, as I have used it to extract the purple colour from alkanet (Alkanna tinctoria).  It is also recommended for use with the so-called “insoluble redwoods”. These include Sanderswood (Pterocarpus santalinus), Camwood (Baphia nitida), Padauk (Pterocarpus indicus) and Barwood (Pterocarpus soyauxii). Although these dyes can be used following the usual simmering process to extract some of the colour, much colour potential remains unused, as it is not soluble in water. This means that the colours obtained may be considerably paler than those achieved using the alcohol-soak method. So I decided to try out Sandra’s method with Sanderswood and with some Walnut and Redwood (Sequoia sp.) shavings I had been sent some time ago by a woodturner. I also remembered I had some Camwood, not in the form of wood shavings but as pressed wood dust, presumably also mixed with some sort of binder. These circular discs were sold to me some years ago by a Nigerian indigo dyer, who explained that they are used by Nigerians as a facial cosmetic, or decoration, rather than as a textile dye. (My husband also recalls that the same lady told us that camwood is rubbed on babies’ skins as an antiseptic, but I must admit that I can’t remember being told this.)



These are some discs of pressed camwood ready for crumbling up and soaking.









I started by putting a layer of shavings (or crumbled camwood discs) about 2 inches deep in the bottom of a glass jar & then I covered them with methylated spirits. I did this with each of the dyes I wanted to test. I then put the lids tightly on the jars and left the shavings to steep for several weeks until the liquid became strongly coloured. Incidentally, although meths is purple in colour, this purple doesn’t seem to affect the final dye colour. In addition to the dyes I tested, I also steeped shavings of birch in the same way but, as the liquid showed little evidence of colour change, there seemed no point in continuing with them any further.

                                                                                                                                                              Here the dyestuffs are soaking in the methylated spirits and a considerable amount of colour has already been extracted. (Note: If you can read the labels, ignore the word “Barwood” under “Redwood” on the left hand jar, as it’s an error on my part!)



The liquid is then strained off into a dyepot, together with more water as necessary, and the fibres are added.

 Do not throw away the meths-soaked wood shavings as they need to be disposed of with care. Return them to their jars in the meantime. Details for disposing of the woodshavings and the used dyebaths are given  below.

The crucial thing to bear in mind is that alcohol/methylated spirits is highly flammable & can easily catch fire near a naked flame. So the dyebath should not be heated on a stove with a naked flame, such as gas or coal or wood, but only on an electric heater. If in any doubt, allow the materials to soak in the dyebath without applying heat

I followed Sandra’s instructions but, as I have an electric heater, I heated the dyebath gently & then allowed the fibres to steep to absorb the colour.                                                                                                                                                Below are the samples soaking in the dye solutions.





I was delighted with the results of the dyebaths made from camwood and sanderswood, as these produced really vivid reds not obtainable from the usual simmering method of colour extraction. However, the results from the other two dyebaths were less spectacular. The colours from the walnut shavings were even paler than those I achieved from similar walnut shavings using the usual method of colour extraction. The redwood which, according to the woodturner who supplied it, came from Sequoia sp., gave a rich red colour when soaked in meths but the dyebath produced greenish shades identical to those obtained from the redwood shavings using the usual dyeing method.















 This image shows on the left from top to bottom:  Sanderswood + no modifier, acid modifier, alkaline modifier and iron modifier; and Walnut + no modifer, acid, alkali, iron;  on the right from top to bottom: Redwood (Sequoia sp.) + no mod, acid, alkali, iron and Camwood + no mod, acid, alkali, iron.

It is interesting that, with this method of colour extraction, the modifiers seem to make less difference in shade than I would have expected.

Although this method of colour extraction using alcohol/methylated spirits can produce really strong, bright colours with some wood shavings, there are several disadvantages to this method of dyeing. Firstly, the smell of the dyebath is very unpleasant if one uses methylated spirits, although the fumes do disappear after a while. Secondly, I found the methylated spirits left the wool fibres feeling a little harsh to the touch. Disposal of the used dyebaths may also present problems, as I would not recommend that they be poured down the drain. I poured mine on the gravel at the edge of my driveway, close to a brick wall. Disposal of the meths-soaked wood shavings might have been difficult, but my husband readily took them, still carefully stored in their glass containers, to use to start his garden fires. Otherwise, I would probably have dug a deep hole in the ground and burned them, then covered the ash with soil. Nevertheless, I was glad I did these experiments as they really illustrated very clearly the colour potential of the “insoluble redwoods” when used with the alcohol extraction method. For the first time, I was able to see some of the colours that were so popular with dyers in the past. So my thanks to Sandra Rude for suggesting these experiments to me. I think next time I will see if I can buy a bottle of cheap vodka to use instead of the meths, as I should imagine that might smell less unpleasant.

My own searches for fungi haven’t proved very fruitful as far as dyebaths are concerned but, thanks again to Leena, I still had some stalks of Cortinarius semisanguineus waiting to be used and recently I managed to get round to using them. The earlier samples of colours from Cortinarius semisanguineus were from the caps only and I had been told that the colours from the stalks were usually more orange in tone. I know from past experience that different parts of the same plant may give different shades, so it’s often a good idea to separate flowers, leaves and stems when testing plants for the first time and prepare a different dyebath for each. It therefore came as no surprise to me that the same holds true for fungi.

This image shows a range of shades from the stalks.

The two skeins on the left are unmordanted and the other skeins are mordanted with alum.

 The unmordanted samples are pretty, reasonably rich shades but they will probably be less fast to light & washing than those mordanted with alum. Time will tell.



The skeins are now in balls, making it easier to identify them.

Top (all alum mordant) left to right: (i) no modifier (ii) + acid (clear vinegar) (iii) + alkali (washing soda)

Bottom left to right:      (i) no mordant, no modifier (ii) no mordant  + alkali & iron modifiers (variegated skein) and (iii) alum mordant + alkali & iron modifiers (variegated skein)

In these experiments, a relatively small amount of dyestuff seemed to go a long way. I had 60gms of mushroom stalks and managed to dye a total of about 250gms of wool the shades shown above. I simmered the stalks for about 2 hours then strained off the dye liquid for the dyebath. I then simmered the stalks again to extract every last bit of colour and added that to the dyebath. I dyed the single-coloured skeins first and modified two of them as above. I then dyed the two variegated skeins. To do this, I first dyed the skeins in the dyebath then removed them and gently squeezed out some of the excess dye. I then added modifiers to the end sections of each skein as follows: I dipped one end of each skein in a solution of washing soda and the other end of each skein in an iron solution, leaving the centre section unmodified. I left the skeins to soak in each modifier until there was a clear variation of shades on each skein, then removed them & rinsed them very carefully so there was no iron contamination.

Note: When modifying sections of skeins, rather than the whole skein, it is important to make sure the areas to remain unmodified do not hang below the sections being modified, otherwise the modifer will leech into the rest of the skein. I used to tie the skein to a hook screwed into a beam above the work surface where I have my heat source. However, since my workroom has been re-roofed this beam is no longer available, so I now put a weighted saucepan on top of some bricks & fasten the skein to the handle of the saucepan. Much will depend on the length of the skein but it is often possible to put the two modifier pans next to one another, leaving only a small gap between, and then both ends can be modified simultaneously.

P.S. A final fungus dyebath:

This photo shows the shades from a small sample dyebath of, I think, Trametes versicolor. The dyebath appeared very pale in colour so I was surprised to achieve what is a rather attractive cinnamon brown. The sample on the left is unmordanted and the sample on the right is alum-mordanted. Next to the samples are the used pieces from the dyebath. The pieces came from one of the fungi I found on my walks in the woods & which has been identified by several readers as probably Trametes versicolor. Perhaps the dyed samples above will help to confirm this identification?
